SUF-1000 Datasheet - Sirenza Microdevices

Cascadable pHEMT MMIC Amplifier

SUF-1000 Features

* Broadband Flat Gain = 10 dB P1dB = 14 dBm Direct-coupled topology Efficient single-supply operation: 5V, 45mA Low Gain Variation vs. Temperature Compact die size (0.75 x 0.88 mm2) Patented Self-Bias Darlington Applications

SUF-1000 General Description

Sirenza Microdevices’ SUF-1000 is a monolithically matched high IP3 broadband pHEMT MMIC amplifier. The self-biased direct-coupled topology provides exceptional cascadable performance from DC-20 GHz. Its efficient operation from a single 5V supply and its compact size (0.88 x 0.75 mm2) make it ideal.

SUF-1000 Datasheet (154.88 KB)

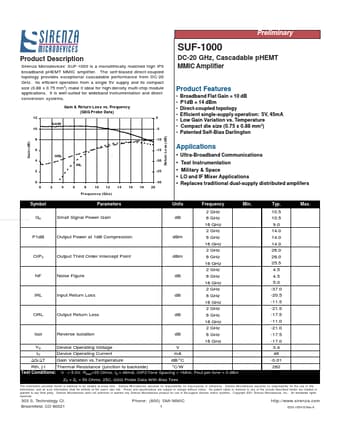

SUF-1000 Datasheet Preview — Preview of SUF-1000 PDF

Datasheet Details

Part number:

SUF-1000

Manufacturer:

Sirenza Microdevices

File Size:

154.88 KB

Description:

Cascadable phemt mmic amplifier.
