SUF-3000 Datasheet - Sirenza Microdevices

Cascadable pHEMT MMIC Amplifier

SUF-3000 Features

* Broadband Performance Gain = 10 dB @ 6 GHz P1dB = 15.5 dBm @ 6 GHz Low-noise, Efficient Gain Block 5V Operation, No Dropping Resistor Low Gain Variation vs. Temperature Patented Thermal Design Patented Self-Bias Darlingt

SUF-3000 General Description

Sirenza Microdevices’ SUF-3000 is a monolithically matched broadband high IP3 gain block covering 0.25-16 GHz. This pHEMT FET-based amplifier uses a patented self-bias Darlington topology featuring a gain and temperature compensating active bias network that operates from a single 5V supply. It offe.

SUF-3000 Datasheet (162.09 KB)

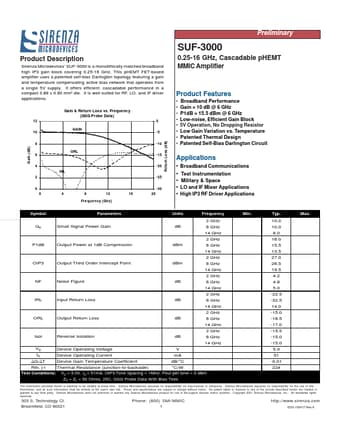

SUF-3000 Datasheet Preview — Preview of SUF-3000 PDF

Datasheet Details

Part number:

SUF-3000

Manufacturer:

Sirenza Microdevices

File Size:

162.09 KB

Description:

Cascadable phemt mmic amplifier.
