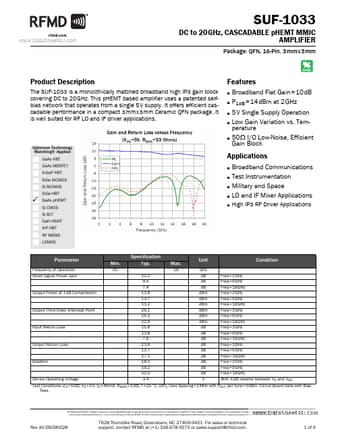

SUF-1033 Cascadable PHEMT MMIC Amplifier

The SUF-1033 is a monolithically matched broadband high IP3 gain block covering DC to 20 GHz. This pHEMT based amplifier uses a patented selfbias network that operates from a single 5 V supply. It offers efficient cascadable performance in a compact 3 mm x 3 mm Ceramic QFN package. It is well suited.

SUF-1033 Features

* Broadband Flat Gain = 10 dB P1dB = 14 dBm at 2 GHz 5 V Single Supply Operation Low Gain Variation vs. Temperature 50 Ω I/O Low-Noise, Efficient Gain Block Broadband Communications Test Instrumentation Military and Space LO and IF Mixer Applications High IP3 R

SUF-1033 Datasheet (520.53 KB)
