SUF-2000 Datasheet - Sirenza Microdevices

Cascadable pHEMT MMIC Amplifier

SUF-2000 Features

* Broadband Performance High Gain = 12.0 dB @ 6 GHz P1dB = 16 dBm @ 6 GHz Low-noise, Efficient Gain Block 3.3V Operation, No Dropping Resistor Low Gain Variation vs. Temperature Patented Thermal Design Patented Self-Bias D

SUF-2000 General Description

Sirenza Microdevices’ SUF-2000 is a monolithically matched broadband high IP3 gain block covering 0.05-10 GHz. This pHEMT FET-based amplifier uses a patented self-bias Darlington topology featuring a gain and temperature compensating active bias network that operates from a single 5V supply. It offe.

SUF-2000 Datasheet (178.29 KB)

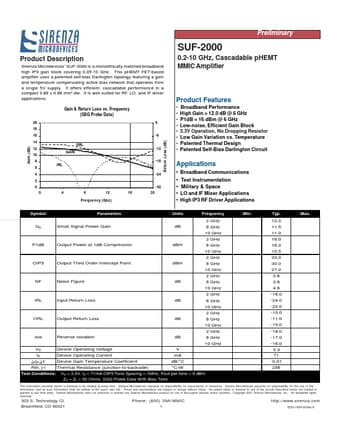

SUF-2000 Datasheet Preview — Preview of SUF-2000 PDF

Datasheet Details

Part number:

SUF-2000

Manufacturer:

Sirenza Microdevices

File Size:

178.29 KB

Description:

Cascadable phemt mmic amplifier.
