S-8213 - BATTERY PROTECTION IC

Seiko Instruments

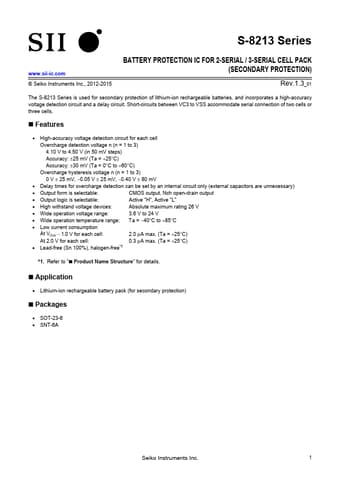

S-8213 Datasheet Preview — Preview of S-8213 PDF

Datasheet Details

Part number	S-8213
Manufacturer	Seiko ↗ Instruments
File Size	471.75 KB
Description	BATTERY PROTECTION IC
Datasheet	S-8213-SeikoInstruments.pdf

S-8213 Product details

Description

Input pin for negative power supply, connection pin for negative voltage of battery 3 Connection pin for negative voltage of battery 2, connection pin for positive voltage of battery 3 Connection pin for negative voltage of battery 1, connection pin for positive voltage of battery 2 Connection pin for positive voltage of battery 1 Input pin for positive power supply Connection pin of charge control FET gate 2. SNT-6A Top view 16 25 34 Figure 4 Pin No.Symbol 1 CO 2 VDD 3 VC1 4 VC2 5 VC3 6 VSS

Features

High-accuracy voltage detection circuit for each cell Overcharge detection voltage n (n = 1 to 3) 4.10 V to 4.50 V (in 50 mV steps) Accuracy: ±25 mV (Ta = +25°C) Accuracy: ±30 mV (Ta = 0°C to +60°C) Overcharge hysteresis voltage n (n = 1 to 3) 0 V ± 25 mV,.
0.05 V ± 25 mV,.
0.40 V ± 80 mV.
Delay times for overcharge detection can be set by an internal circuit only (external capacitors are unnecessary).
Output form is selectable: CMOS output,.
