S-8206A - BATTERY PROTECTION IC

Seiko Instruments

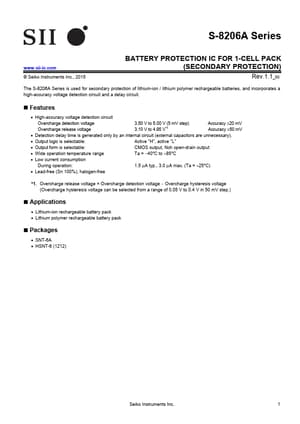

S-8206A Datasheet Preview — Preview of S-8206A PDF

Datasheet Details

Part number	S-8206A
Manufacturer	Seiko ↗ Instruments
File Size	570.90 KB
Description	BATTERY PROTECTION IC
Datasheet	S-8206A-SeikoInstruments.pdf

S-8206A Product details

Description

No connection Connection pin of charge control FET gate (CMOS output) Input pin for test signal 4 VSS Input pin for negative power supply 5 VDD Input pin for positive power supply 6 VM Negative power supply pin for CO pin 1. 1 1.

Features

High-accuracy voltage detection circuit Overcharge detection voltage Overcharge release voltage 3.50 V to 5.00 V (5 mV step) 3.10 V to 4.95 V.
1 Accuracy ±20 mV Accuracy ±50 mV.
Detection delay time is generated only by an internal circuit (external capacitors are unnecessary).
Output logic is selectable: Active "H", active "L".
Output form is selectable: CMOS output, Nch open-drain output.
Wide operation temperature range Ta =.
