S-8203A - Battery Protection

ABLIC

📥 Download Datasheet

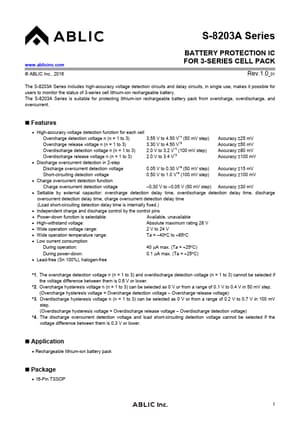

S-8203A Datasheet Preview — Preview of S-8203A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-8203A
Manufacturer	ABLIC ↗
File Size	853.73 KB
Description	Battery Protection
Datasheet	S-8203A-ABLIC.pdf

S-8203A Product details

Features

High-accuracy voltage detection function for each cell Overcharge detection voltage n (n = 1 to 3) 3.55 V to 4.50 V.
1 (50 mV step) Overcharge release voltage n (n = 1 to 3) 3.30 V to 4.50 V.
2 Overdischarge detection voltage n (n = 1 to 3) 2.0 V to 3.2 V.
1 (100 mV step) Overdischarge release voltage n (n = 1 to 3) 2.0 V to 3.4 V.
3 Accuracy 25 mV Accuracy 50 mV Accuracy 80 mV Accuracy 100 mV.
Discharge overcurrent detection in 2-step Discharge overcurrent.
