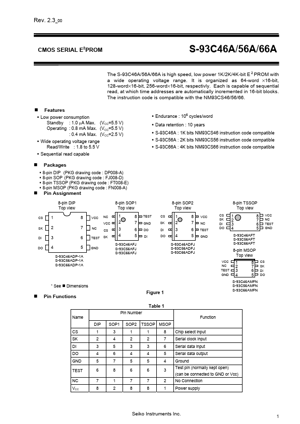

S93C46A, S93C56 - CMOS SERIAL E2PROM

Seiko Instruments

Datasheet Details

Part number	S93C46A, S93C56
Manufacturer	Seiko Instruments
File Size	404.91 KB
Description	CMOS SERIAL E2PROM
Datasheet	S93C56_SeikoInstruments.pdf
Note	This datasheet PDF includes multiple part numbers: S93C46A, S93C56. Please refer to the document for exact specifications by model.

Low power consumption Standby : 1.0 µA Max. (VCC=5.5 V) Operating : 0.8 mA Max. (VCC=5.5 V) : 0.4 mA Max. (VCC=2.5 V) y Wide operating voltage range Read/Write : 1.8 to 5.5 V y Sequential read capable y Endurance : 106 cycles/word y Data retention : 10 years y S-93C46A : 1K bits NM93CS46 instruction code compatible y S-93C56A : 2K bits NM93CS56 instruction code compatible y S-93C66A : 4K bits NM93CS66 instruction code compatible.
Packages y 8-pin DIP (PKG drawing code : DP008-A) y 8-.
