S93462

(S93462 / S93463) Precision Supply-Voltage Monitor and Reset Controller

S93462 Features

* Precision Monitor & RESET Controller www.datasheet4u.com

* RESET and RESET Outputs

* Guaranteed RESET Assertion to VCC = 1V

* 150ms Reset Pulse Width

* Internal 1.26V Reference with ±1% Accuracy

* ZERO External Components Required

* Memory

S93462 General Description

The S93462/463 provides a precision reset controller that ensures correct system operation during brownout and power-up/-down conditions. It is configured with two open drain reset outputs; pin 7 is an active high output and pin 6 is an active low output. 2 2021 4.2 1/23/01 Summit Microelectronic.

S93462 Datasheet (191.72 KB)

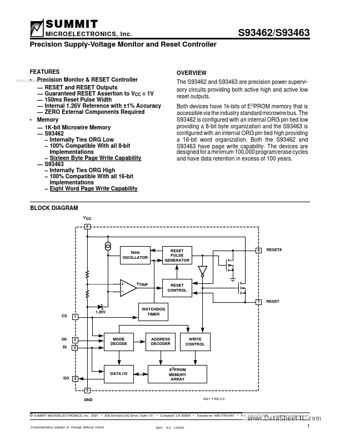

Preview of S93462 PDF

Datasheet Details

Part number:

S93462

Manufacturer:

Summit Microelectronics

File Size:

191.72 KB

Description:

(s93462 / s93463) precision supply-voltage monitor and reset controller.
