S93663

Voltage Monitor and Reset Controller

S93663 Features

* Precision Monitor & RESET Controller

* RESET and RESET Outputs

* Guaranteed RESET Assertion to VCC = 1V

* 200ms Reset Pulse Width

* Internal 1.26V Reference with ±1% Accuracy

* ZERO External Components Required

* Memory

* 4K-bit Micro

S93663 General Description

The S93662/663 provides a precision reset controller that ensures correct system operation during brownout and power-up/-down conditions. It is configured with two open drain reset outputs; pin 7 is an active high output and pin 6 is an active low output. During power-up, the reset outputs remain ac.

S93663 Datasheet (76.66 KB)

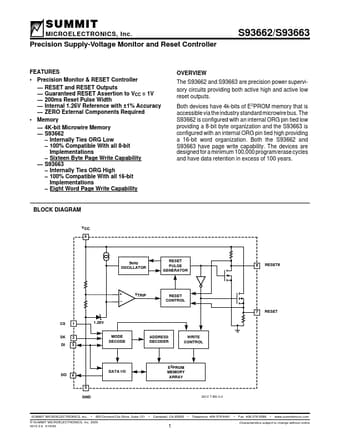

Preview of S93663 PDF

Datasheet Details

Part number:

S93663

Manufacturer:

ETC

File Size:

76.66 KB

Description:

Voltage monitor and reset controller.
