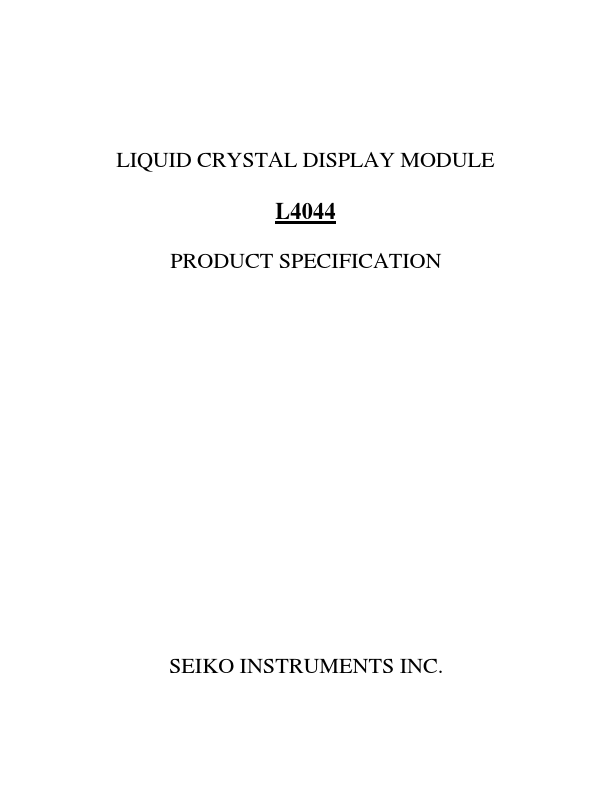

L4044 - LIQUID CRYSTAL DISPLAY

Seiko

Datasheet Details

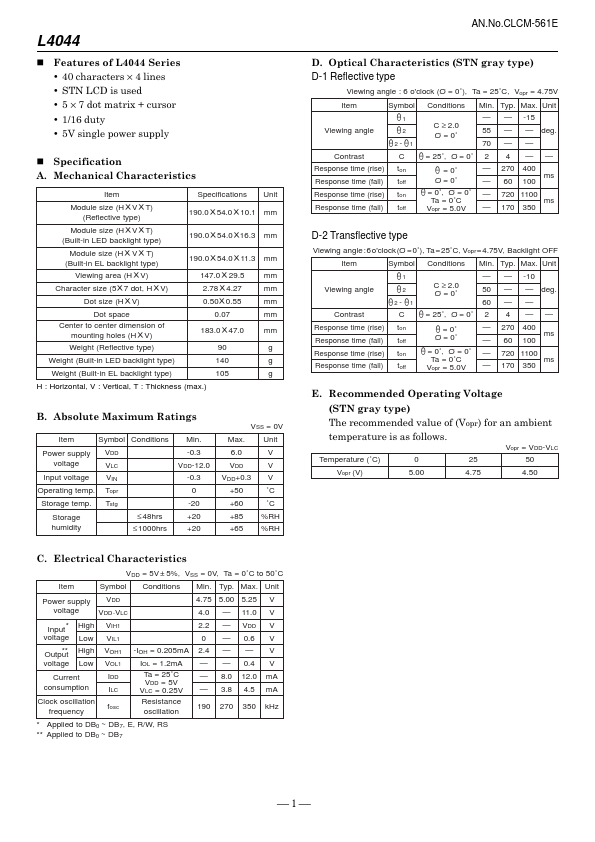

of L4044 Series 40 characters × 4 lines STN LCD is used 5 × 7 dot matrix + cursor 1/16 duty 5V single power supply n Specification A. Mechanical Characteristics Item Specifications Unit Module size (H V T) (Reflective type) 190.0 54.0 10.1 mm Module size (H V T) (Built-in LED backlight type) 190.0 54.0 16.3 mm Module size (H V T) (Built-in EL backlight type) 190.0 54.0 11.3 mm Viewing area (H V) 147.0 29.5 mm Character size (5 7 dot, H V) 2.78 4.27 mm Dot size (H V) 0.5.
