S-35392A 2-WIRE REAL-TIME CLOCK

I/O Configuration Pin for constant 1 32KO output of 32.768 Output kHz Nch open-drain output (no protective diode at VDD) 2 XOUT Connection pins 3 XIN for crystal oscillator * * 4 VSS GND pin * * 5 INT2 Output pin for interrupt signal 2 Output Nch open-d.

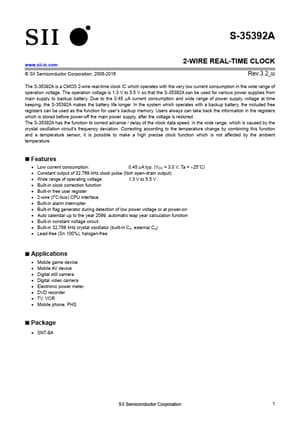

S-35392A www.sii-ic.com © SII Semiconductor Corporation, 2006-2016 2-WIRE REAL-TIME CLOCK Rev.3.2_02 The S-35392A is a CMOS 2-wire real-time clock IC which operates with the very low current consumption in the wide range of operation voltage. The operation voltage is 1.3 V to 5.5 V so that the S-35392A can be used for various power supplies from main supply to backup battery. Due to the 0.45 μA current consumption and wide range of power supply voltage at time keeping, the S-35392A makes the .

S-35392A Features

* Low current consumption: 0.45 μA typ. (VDD = 3.0 V, Ta = +25°C)

* Constant output of 32.768 kHz clock pulse (Nch open-drain output)

* Wide range of operating voltage: 1.3 V to 5.5 V

* Built-in clock correction function

* Built-in free user register
