SM7012-CR1

Right Angle and Straight GBIC Connectors

SM7012-CR1 Features

* s UL Recognized / CSA Certified s Solder and aqueous wash compatible s Compatible with wave solder and IR reflow s Integral PCB retention and ESD protection feature s Options for 0.062”, 0.093” and 0.125” thick PCB’s s Gold plated contacts for high mating cycle durability s 100% electrically tested

SM7012-CR1 General Description

The SM7012-Cxx GBIC connectors enable a host platform to support a wide variety of cable media types and transmission ranges by plugging in the desired interface converter per the SDD 8053 specification. The integral ESD ground strap and alignment system enables blind mating, hot plugging and provid.

SM7012-CR1 Datasheet (167.06 KB)

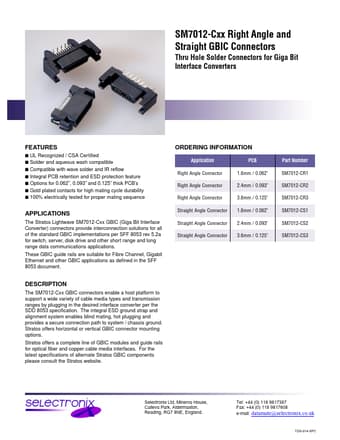

Preview of SM7012-CR1 PDF

Datasheet Details

Part number:

SM7012-CR1

Manufacturer:

Selectronix

File Size:

167.06 KB

Description:

Right angle and straight gbic connectors.
