SM7012-CS1, SM7012-CR1 Right Angle and Straight GBIC Connectors

Description

SM7012-Cxx Right Angle and Straight GBIC Connectors Thru Hole Solder Connectors for Giga Bit Interface Converters .
The SM7012-Cxx GBIC connectors enable a host platform to support a wide variety of cable media types and transmission ranges by plugging in the desire.

📥 Download Datasheet

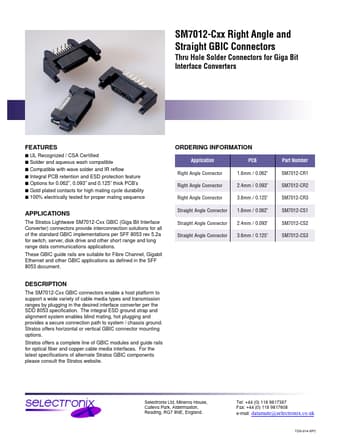

SM7012-CS1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SM7012-CS1, SM7012-CR1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM7012-CS1, SM7012-CR1
Manufacturer: Selectronix
File Size: 167.06 KB
Datasheet: SM7012-CR1-Selectronix.pdf
Description: Right Angle and Straight GBIC Connectors
Note: This datasheet PDF includes multiple part numbers: SM7012-CS1, SM7012-CR1.
Please refer to the document for exact specifications by model.

Features

* s UL Recognized / CSA Certified s Solder and aqueous wash compatible s Compatible with wave solder and IR reflow s Integral PCB retention and ESD protection feature s Options for 0.062”, 0.093” and 0.125” thick PCB’s s Gold plated contacts for high mating cycle durability s 100% electrically tested

Applications

* The Stratos Lightwave SM7012-Cxx GBIC (Giga Bit Interface Converter) connectors provide interconnection solutions for all of the standard GBIC implementations per SFF 8053 rev 5.2a for switch, server, disk drive and other short range and long range data communications applications. These GBIC guide
