2N2913 DUAL NPN PLANAR TRANSISTORS

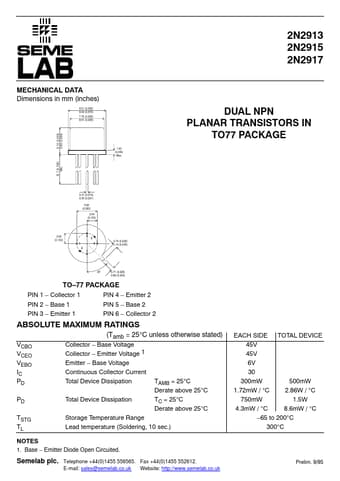

2N2913 2N2915 2N2917 MECHANICAL DATA Dimensions in mm (inches) 8.51 (0.335) 9.40 (0.370) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) DUAL NPN PLANAR TRANSISTORS IN TO77 PACKAGE 1.02 (0.040) Max. 12.7 (0.500) Min. 0.41 (0.016) 0.53 (0.021) 5.08 (0.200) 2.54 (0.100) 2.54 (0.100) 3 2 4 5 6 0.74 (0.029) 1.14 (0.045) 1 45˚ 0.71 (0.028) 0.86 (0.034) TO 77 PACKAGE PIN 1 Collector 1 PIN 2 Base 1 PIN 3 Emitter 1 PIN 4 Emitter 2 PIN 5

2N2913_SemeLAB.pdf
