2N3445 Datasheet - Seme LAB

2N3445 Bipolar NPN Device

2N3445 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 60V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 7.5A All Semelab hermetically sealed products can be processed.

2N3445 Datasheet (11.29 KB)

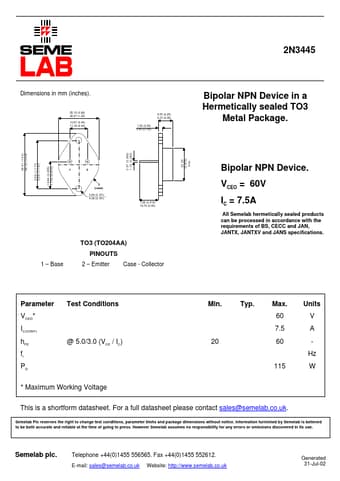

2N3445 Datasheet Preview — Preview of 2N3445 PDF

Datasheet Details

Part number:

2N3445

Manufacturer:

Seme LAB

File Size:

11.29 KB

Description:

Bipolar npn device.
