2N3446, 2N3445 Datasheet - Motorola

2N3446, 2N3445, NPN silicon power transistors

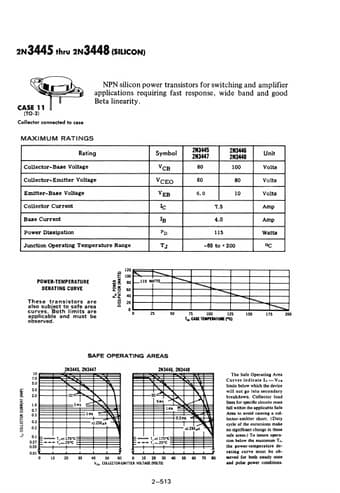

2N3445 thru 2N3448 (SILICON) CAS~ (TO-3) Collector connected to case NPN silicon power transistors for switching and amplifier

Applications

* requiring fast response, wide band and good Beta linearity. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Power Dissipation Junction Operating Temperature Range Symbol VCB VCEO VEB Ie IB PD TJ 2N3445 2N3447 80 2N3446 2

2N3445-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N3446, 2N3445. Please refer to the document for exact specifications by model.
2N3446 Datasheet Preview Page 2 2N3446 Datasheet Preview Page 3

Datasheet Details

Part number:

2N3446, 2N3445

Manufacturer:

Motorola

File Size:

302.43 KB

Description:

Npn silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N3446, 2N3445.
Please refer to the document for exact specifications by model.
