2N3501CSM4 - NPN TRANSISTOR

2N3501CSM4 Description

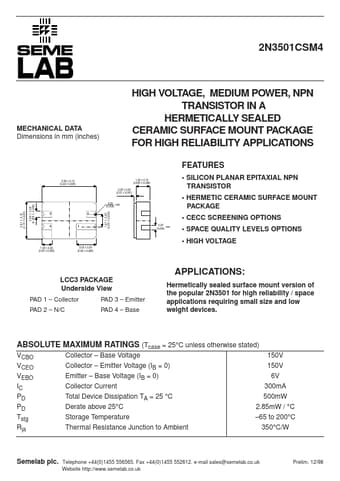

2N3501CSM4 MECHANICAL DATA Dimensions in mm (inches) HIGH VOLTAGE, MEDIUM POWER, NPN TRANSISTOR IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKA.

2N3501CSM4 Features

* 5.59 ± 0.13 (0.22 ± 0.005) 0.25 ± 0.03 (0.01 ± 0.001) 1.40 ± 0.15 (0.055 ± 0.006)
* SILICON PLANAR EPITAXIAL NPN TRANSISTOR
* HERMETIC CERAMIC SURFACE MOUNT PACKAGE
* CECC SCREENING OPTIONS 0.23 min. (0.009) 0.64 ± 0.08 (0.025 ± 0.003) 0.23 rad. (0.009) 3 2 1.27 ± 0.05 (

📥 Download Datasheet

Preview of 2N3501CSM4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3501CSM4
Manufacturer
Seme LAB
File Size
17.89 KB
Datasheet
2N3501CSM4_SemeLAB.pdf
Description
NPN TRANSISTOR
