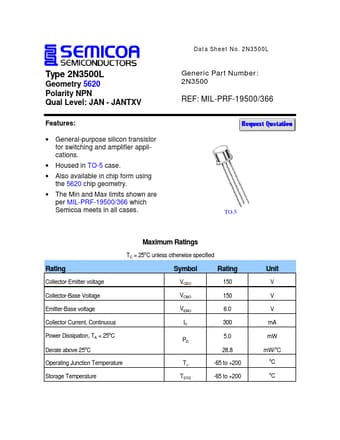

2N3500L Datasheet, Transistor, Semicoa Semiconductor

2N3500L Features

• Transistor
• General-purpose silicon transistor for switching and amplifier applications. Housed in TO-5 case. Also available in chip form using the 5620 chip geometry. The Min and Max li

PDF File Details

Part number:

2N3500L

Manufacturer:

Semicoa Semiconductor

File Size:

45.11kb

Download:

📄 Datasheet

Description:

Npn transistor.

2N3500L Application

• Applications Housed in TO-5 case. Also available in chip form using the 5620 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/366
