2N5153 - PNP transistors

This page provides the datasheet information for the 2N5153, a member of the 2N5151 PNP transistors family.

Datasheet Summary

Description

The 2N5151 and the 2N5153 are silicon expitaxial planar PNP transistors in jedec TO-39 metal case intended for use in switching applications.

Emitter Pin 2 Base Pin 3 Collector ABSOLU

📥 Download Datasheet

Datasheet preview – 2N5153

Datasheet Details

Part number 2N5153
Manufacturer Seme LAB
File Size 43.30 KB
Description PNP transistors
Datasheet download datasheet 2N5153 Datasheet
Additional preview pages of the 2N5153 datasheet.

📁 Similar Datasheet

  • 2N5153 - PNP POWER SILICON TRANSISTOR (Microsemi Corporation)
  • 2N5153 - NPN Power Silicon Transistor (MA-COM)
  • 2N5153 - PNP Power Silicon Transistor (VPT)
  • 2N5153 - HIGH SPEED PNP TRANSISTOR (SSDI)
  • 2N5153HR - 5A PNP Transistor (STMicroelectronics)
  • 2N5153L - NPN Power Silicon Transistor (MA-COM)
  • 2N5153L - PNP POWER SILICON TRANSISTOR (Microsemi Corporation)
  • 2N5153L - PNP Power Silicon Transistor (VPT)
  • 2N5153U3 - NPN Power Silicon Transistor (MA-COM)
  • 2N5153U3 - PNP Power Silicon Transistor (VPT)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

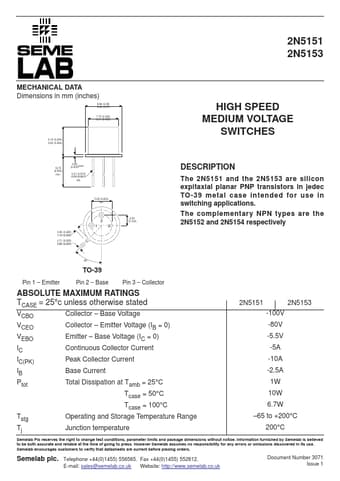

2N5151 2N5153 MECHANICAL DATA Dimensions in mm (inches) 8.89 (0.35) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) HIGH SPEED MEDIUM VOLTAGE SWITCHES 12.70 (0.500) min. (00..08395)max. 0.41 (0.016) 0.53 (0.021) dia. 0.66 (0.026) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 5.08 (0.200) typ. 2 1 3 2.54 (0.100) DESCRIPTION The 2N5151 and the 2N5153 are silicon expitaxial planar PNP transistors in jedec TO-39 metal case intended for use in switching applications.
