BFT57 Datasheet - Seme LAB

BFT57 Bipolar NPN Device in a Hermetically sealed TO18 Metal Package

BFT57 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar NPN Device in a Hermetically sealed TO18 Metal Package. Bipolar NPN Device. VCEO = 160V 0.48 (0.019) 0.41 (0.016) dia. IC = 0.2A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 3 2 1 2.54 (0.100) Nom. TO18 (TO206AA) PINOUTS 1 Emitter 2 Base 3 Collector Parameter VC.

BFT57_SemeLAB.pdf

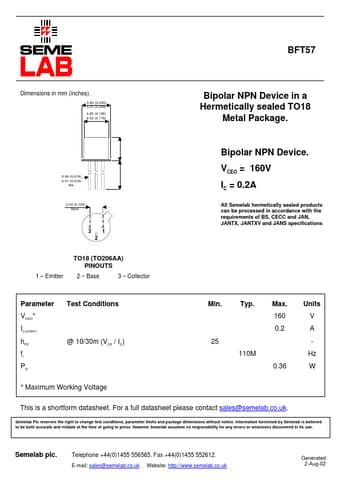

Preview of BFT57 PDF

Datasheet Details

Part number:

BFT57

Manufacturer:

Seme LAB

File Size:

10.37 KB

Description:

Bipolar npn device in a hermetically sealed to18 metal package.
