BSX62SMD05 Datasheet - Seme LAB

BSX62SMD05 Bipolar NPN Device

BSX62SMD05 Dimensions in mm (inches). 7.54 (0.296) 0.76 (0.030) min. 2.41 (0.095) 2.41 (0.095) 0.127 (0.005) 3.175 (0.125) Max. 3.05 (0.120) Bipolar NPN Device in a Hermetically sealed Ceramic Surface Mount Package for High Reliability Applications 1 3 10.16 (0.400) 0.76 (0.030) min. 5.72 (.225) 2 Bipolar NPN Device. VCEO = 40V 0.127 (0.005) 16 PLCS 0.50(0.020) 7.26 (0.286) 0.127 (0.005) IC = 3A 0.50 (0.020) max. All Semelab hermetically sealed products can be processed in accordan.

BSX62SMD05_SemeLAB.pdf

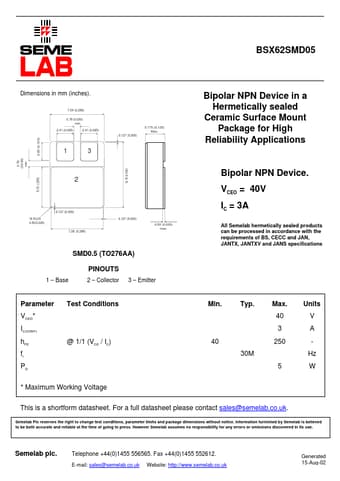

Preview of BSX62SMD05 PDF

Datasheet Details

Part number:

BSX62SMD05

Manufacturer:

Seme LAB

File Size:

68.21 KB

Description:

Bipolar npn device.
