CV10253L Datasheet - Seme LAB

CV10253L Bipolar NPN Device

CV10253L Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) Bipolar NPN Device in a Hermetically sealed TO5 Metal Package. 38.00 (1.5) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021) dia. 5.08 (0.200) typ. 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 2 13 2.54 (0.100) 45° 1 Emitter TO5 (TO205AA) PINOUTS 2 Base 3 Collector Parameter VCEO IC(CONT) hFE ft PD Test Conditions @ 0.4/0.01 (VCE .

CV10253L Datasheet (10.03 KB)

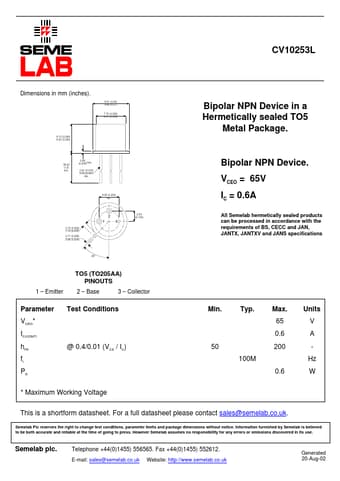

Preview of CV10253L PDF

Datasheet Details

Part number:

CV10253L

Manufacturer:

Seme LAB

File Size:

10.03 KB

Description:

Bipolar npn device.
