CV110-1, Cellular-band Single-Branch Downconverter

www.DataSheet4U.com CV110-1 Cellular-band Single-Branch Downconverter The Communications Edge TM Preliminary Information Product .
The CV110-1 is a high-linearity downconverter designed to meet the performance, functionality, and cost goals of current and next generation mobile in.

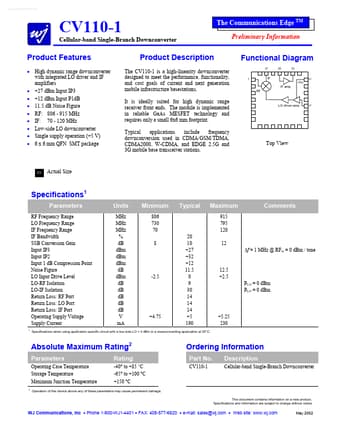

datasheet Preview Page 1 from Datasheet4u.com

CV110-1_WJCommunication.pdf

CV110-1 Datasheet Preview — Preview of CV110-1 PDF

Datasheet Details

Part number:

CV110-1

Manufacturer:

WJ Communication

File Size:

245.61 KB

Description:

Cellular-band Single-Branch Downconverter

Features

* High dynamic range downconverter with integrated LO driver and IF amplifiers
* +27 dBm Input IP3
* +12 dBm Input P1dB
* 11.5 dB Noise Figure
* RF: 806 - 915 MHz
* IF: 70 - 120 MHz
* Low-side LO downconverter
* Single supply operation

Applications

* include frequency downconversion used in CDMA/GSM/TDMA, CDMA2000, W-CDMA, and EDGE 2.5G and 3G mobile base transceiver stations. Functional Diagram 27 25 23 1 8 IF IF amp +Vcc 21 RF LO driver amp 17 Top View CV Actual Size Specifications1 Parameters RF Frequency Range LO Frequency Range I
