D1201UK METAL GATE RF SILICON FET

TetraFET D1201UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C 2 1 A 3 F (2 pls) H J N (typ) B D (2 pls) MI PIN 1 PIN 3 SOURCE GATE E KG DP PIN 2 DRAIN DIM mm A 16.51 B 6.35 C 45° D 3.30 E 18.92 F 1.52 G 2.16 H 14.22 I 1.52 J 6.35 K 0.13 M 5.08 N 1.27 x 45° Tol. Inches Tol. 0.25 0.650 0.010 0.13 0.250 0.005 5° 45° 5° 0.13 0.130 0.005 0.08 0.745 0.003 0.13 0.060 0.005 0.13 0.085 0.005 0.08 0.560 0.003 0.13 0.060 0.005 0.13 0.250 0.005 0.

D1201UK Features

* SIMPLIFIED AMPLIFIER DESIGN

* SUITABLE FOR BROAD BAND APPLICATIONS

* LOW Crss

* LOW NOISE

* HIGH GAIN

* 10 dB MINIMUM APPLICATIONS

* HF/VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHz ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C unless otherwise stat

D1201UK Datasheet (113.92 KB)

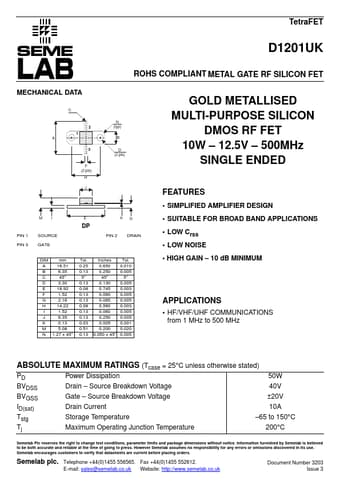

D1201UK Datasheet Preview — Preview of D1201UK PDF

Datasheet Details

Part number:

D1201UK

Manufacturer:

Seme LAB

File Size:

113.92 KB

Description:

Metal gate rf silicon fet.
