D1208UK Datasheet (Seme LAB) - METAL GATE RF SILICON FET

D1208UK, METAL GATE RF SILICON FET

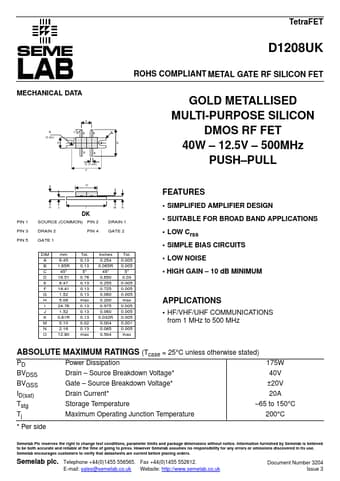

TetraFET D1208UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA B (2 pls) E A C2 3 1 5 4 G (4 pls) F K D GOLD METALLISED MULTI-PURPOSE SILICON DMOS RF FET 40W 12.5V 500MHz PUSH PULL O PIN 1 PIN 3 PIN 5 HJ I DK SOURCE (COMMON) PIN 2 DRAIN 2 PIN 4 GATE 1 MN DRAIN 1 GATE 2 DIM mm A 6.45 B 1.65R C 45° D 16.51 E 6.47 F 18.41 G 1.52 H 5.08 I 24.76 J 1.52 K 0.81R M 0.10 N 2.16 O 12.80 Tol.

Inches Tol.

0.13 0.254 0.00

D1208UK Features

* SIMPLIFIED AMPLIFIER DESIGN

* SUITABLE FOR BROAD BAND APPLICATIONS

* LOW Crss

* SIMPLE BIAS CIRCUITS

* LOW NOISE

* HIGH GAIN

* 10 dB MINIMUM APPLICATIONS

* HF/VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHz ABSOLUTE MAXIMUM RATINGS (Tca
