IP78M00-LCC4 Datasheet, Package, Seme LAB

IP78M00-LCC4 Features

• Package
• OUTPUT CURRENT UP TO 0.5A
• OUTPUT VOLTAGES OF 5, 12, 15V
• 0.01% / V LINE REGULATION
• 0.3% / A LOAD REGULATION
• THERMAL OVERLOAD PROTECTION

PDF File Details

Part number:

IP78M00-LCC4

Manufacturer:

Seme LAB

File Size:

24.17kb

Download:

📄 Datasheet

Description:

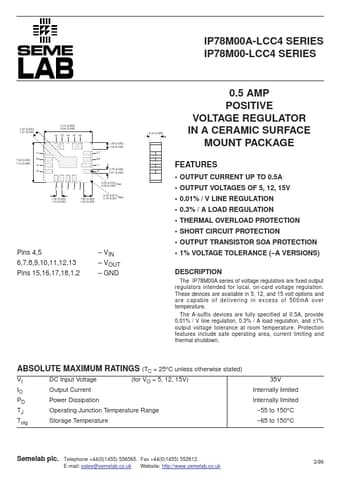

0.5 amp positive voltage regulator in a ceramic surface mount package. The IP78M00A series of voltage regulators are fixed output regulators intended for local, on-card voltage regulation. These devices a
