IP78M05-LCC4 0.5 AMP POSITIVE VOLTAGE REGULATOR IN A CERAMIC SURFACE MOUNT PACKAGE

The IP78M00A series of voltage regulators are fixed output regulators intended for local, on-card voltage regulation. These devices are available in 5, 12, and 15 volt options and are capable of delivering in excess of 500mA over temperature. The A-suffix devices are fully specified at 0.5A, provide.

IP78M05-LCC4 Features

* OUTPUT CURRENT UP TO 0.5A

* OUTPUT VOLTAGES OF 5, 12, 15V

* 0.01% / V LINE REGULATION

* 0.3% / A LOAD REGULATION

* THERMAL OVERLOAD PROTECTION

* SHORT CIRCUIT PROTECTION

* OUTPUT TRANSISTOR SOA PROTECTION 11 7.62 (0.300) 7.12 (0.280) 17 18

IP78M05-LCC4_SemeLAB.pdf

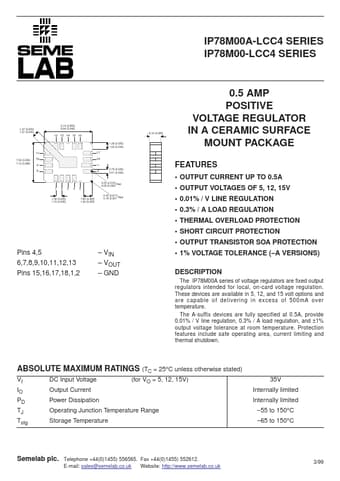

IP78M05-LCC4 Datasheet Preview — Preview of IP78M05-LCC4 PDF

Datasheet Details

Part number:

IP78M05-LCC4

Manufacturer:

Seme LAB

File Size:

24.17 KB

Description:

0.5 amp positive voltage regulator in a ceramic surface mount package.
