SML50A21 Datasheet - Seme LAB

SML50A21 N-CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFETS

SML50A21 TO 3 Package Outline. Dimensions in mm (inches) 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) N CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFETS 1.47 (0.058) 1.60 (0.063) 1 2 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) VDSS 500V 21A ID(cont) RDS(on) 0.220Ω Faster Switching Lower Leakage TO 3 Hermetic Package 38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.

SML50A21_SemeLAB.pdf

Preview of SML50A21 PDF

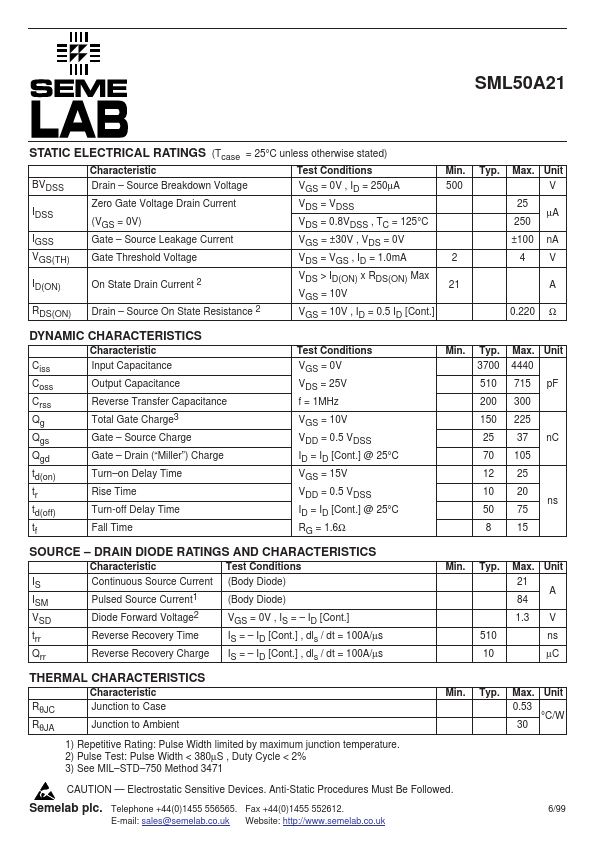

SML50A21 Datasheet Preview Page 2

Datasheet Details

Part number:

SML50A21

Manufacturer:

Seme LAB

File Size:

20.78 KB

Description:

N-channel enhancement mode high voltage power mosfets.
