HFS10N60S - N-Channel MOSFET

📥 Download Datasheet

Datasheet Details

Part number HFS10N60S
Manufacturer SemiHow
File Size 246.27 KB
Description N-Channel MOSFET
Datasheet download datasheet HFS10N60S Datasheet

Overview

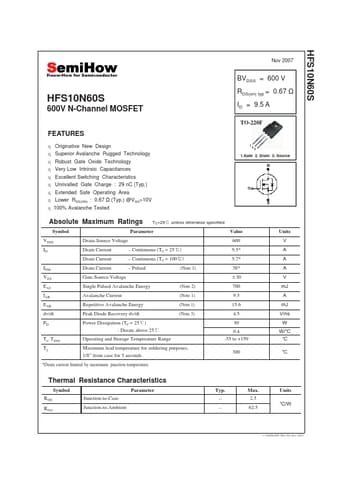

HFS10N60S Nov 2007 HFS10N60S 600V N-Channel MOSFET BVDSS = 600 V RDS(on) typ = 0.67 ȍ ID = 9.

Key Features

  • ˜ Originative New Design ˜ Superior Avalanche Rugged Technology ˜ Robust Gate Oxide Technology ˜ Very Low Intrinsic Capacitances ˜ Excellent Switching Characteristics ˜ Unrivalled Gate Charge : 29 nC (Typ. ) ˜ Extended Safe Operating Area ˜ Lower RDS(ON) : 0.67 ȍ (Typ. ) @VGS=10V ˜ 100% Avalanche Tested TO-220F 123 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt Drain-Source Voltage Drain Current.
