HFW640 - 200V N-Channel MOSFET

Key Features

  •  Originative New Design  Superior Avalanche Rugged Technology  Robust Gate Oxide Technology  Very Low Intrinsic Capacitances  Excellent Switching Characteristics  Unrivalled Gate Charge : 37 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 0.145 Ω (Typ. ) @VGS=10V  100% Avalanche Tested D2-PAK I2-PAK 2 1 3 HFW640 1 2 3 HFI640 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt Dra.

📥 Download Datasheet

Datasheet Details

Part number HFW640
Manufacturer SemiHow
File Size 709.39 KB
Description 200V N-Channel MOSFET
Datasheet download datasheet HFW640 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HFW1230K00 Relay CII Technology

Other Datasheets by SemiHow

Part Number Description
HFW6N90 N-Channel MOSFET
HFW10N60 N-Channel MOSFET
HFW10N60S N-Channel MOSFET
HFW10N60U N-Channel MOSFET
HFW10N65S N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

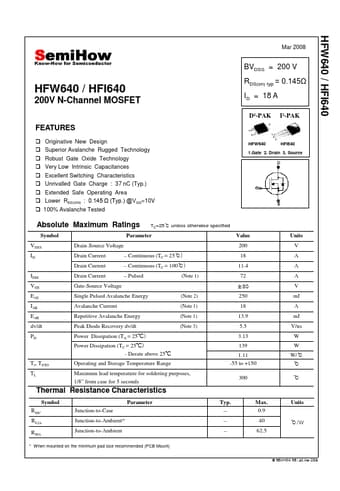

HFW640 / HFI640 Mar 2008 HFW640 / HFI640 200V N-Channel MOSFET BVDSS = 200 V RDS(on) typ = 0.145Ω ID = 18 A FEATURES  Originative New Design  Superior Avalanche Rugged Technology  Robust Gate Oxide Technology  Very Low Intrinsic Capacitances  Excellent Switching Characteristics  Unrivalled Gate Charge : 37 nC (Typ.)  Extended Safe Operating Area  Lower RDS(ON) : 0.145 Ω (Typ.) @VGS=10V  100% Avalanche Tested D2-PAK I2-PAK 2 1 3 HFW640 1 2 3 HFI640 1.Gate 2. Drain 3.
