HTD2A80AS

TRIAC

HTD2A80AS Datasheet (364.38 KB)

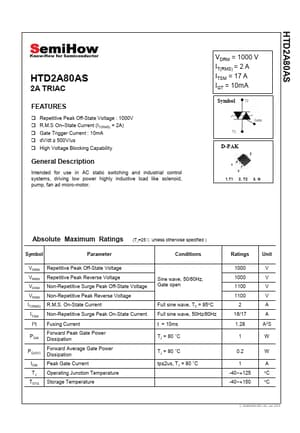

Preview of HTD2A80AS PDF Datasheet

Datasheet Details

Part number:

HTD2A80AS

Manufacturer:

SemiHow

File Size:

364.38 KB

Description:

Triac

HTD2A80AS Features

* ‰ Repetitive Peak Off-State Voltage : 1000V ‰ R.M.S On

* State Current (IT(RMS) = 2A) ‰ Gate Trigger Current : 10mA ‰ dV/dt • 500V/us ‰ High Voltage Blocking Capability General Description Intended for use in AC static switching and industrial control systems, driving low power highly inductiv

HTD2A80AS General Description

Intended for use in AC static switching and industrial control systems, driving low power highly inductive load like solenoid, pump, fan ad micro-motor. VDRM = 1000 V IT(RMS) = 2 A ITSM = 17 A IGT = 10mA Symbol D-PAK 2 1 3 1.T1 2. T2 3. G Absolute Maximum Ratings (TJ=25୅ unless otherwise speci.
