KSC13003A - NPN Silicon Power Transistor

Product Overview

SemiHow

📥 Download Datasheet

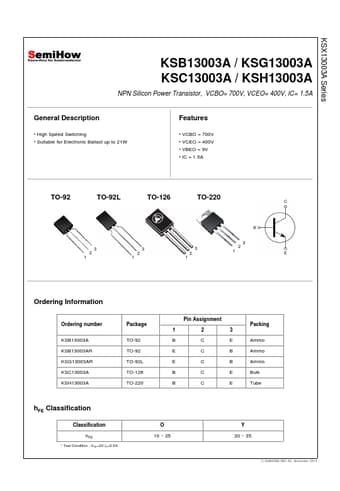

KSC13003A NPN Silicon Power Transistor by SemiHow - Datasheet Preview — Datasheet preview – KSC13003A

Datasheet Details

Part number	KSC13003A
Manufacturer	SemiHow
File Size	248.63 KB
Description	NPN Silicon Power Transistor
Datasheet	KSC13003A Datasheet
Additional preview pages of the KSC13003A datasheet.

Product details

Description

High Speed Switching Suitable for Electronic Ballast up to 21W

Features

VCBO = 700V.
VCEO = 400V.
VBEO = 9V.
IC = 1.5A TO-92 TO-92L TO-126 TO-220 3 2 1 3 2 1 3 2 1 3 2 1 Ordering Information Ordering number KSB13003A KSB13003AR KSG13003AR KSC13003A KSH13003A Package TO-92 TO-92 TO-92L TO-126 TO-220 Pin Assignment 123 BCE ECB ECB BCE BCE Packing Ammo Ammo Ammo Bulk Tube hFE Classification Classification hFE.
Test Condition : VCE=2V,IC=0.5A O 10 ~ 25 Y 20 ~ 35 క͑΄Ͷ;ͺ͹΀Έ͑΃Ͷ·͟Ͳ͑͡͝ͿΠΧΖΞΓΖΣ͑ͣͥ͑͢͡ KSX13003A Series.
