KSC13003H - NPN Silicon Power Transistor

Product Overview

SemiHow

📥 Download Datasheet

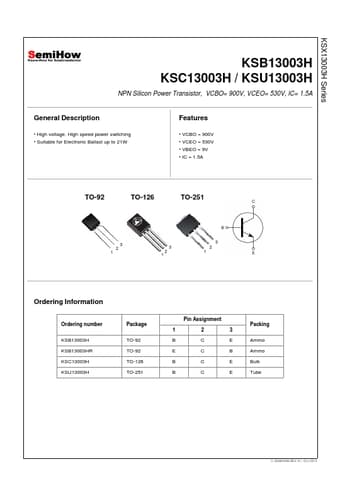

KSC13003H NPN Silicon Power Transistor by SemiHow - Datasheet Preview — Datasheet preview – KSC13003H

Datasheet Details

Part number	KSC13003H
Manufacturer	SemiHow
File Size	216.58 KB
Description	NPN Silicon Power Transistor
Datasheet	KSC13003H Datasheet
Additional preview pages of the KSC13003H datasheet.

Product details

Description

High voltage, High speed power switching Suitable for Electronic Ballast up to 21W

Features

VCBO = 900V.
VCEO = 530V.
VBEO = 9V.
IC = 1.5A TO-92 TO-126 TO-251 3 2 1 3 2 1 3 2 1 Ordering Information Ordering number KSB13003H KSB13003HR KSC13003H KSU13003H Package TO-92 TO-92 TO-126 TO-251 Pin Assignment 123 BCE ECB BCE BCE Packing Ammo Ammo Bulk Tube క͑΄Ͷ;ͺ͹΀Έ͑΃Ͷ·͟Ͳ͑͢͝΀ΔΥ͑ͣͦ͑͢͡ KSX13003H Series KSB13003H KSC13003H / KSU13003H NPN Silicon Power Transistor, VCBO= 900V, VCEO= 530V, IC= 1.5A Absolute Maximum Ratings TC=25୅ unless otherwise.
