SPGP0365A

The SPGP0365A is SEMIHOW POWER SWITCH designed by SemiHow.

Product Overview

SemiHow

Datasheet Details

Part number	SPGP0365A, SPGN0365A
Manufacturer	SemiHow
File Size	1.77 MB
Description	SEMIHOW POWER SWITCH
Datasheet	SPGN0365A_SemiHow.pdf
Note	This datasheet PDF includes multiple part numbers: SPGP0365A, SPGN0365A. Please refer to the document for exact specifications by model.

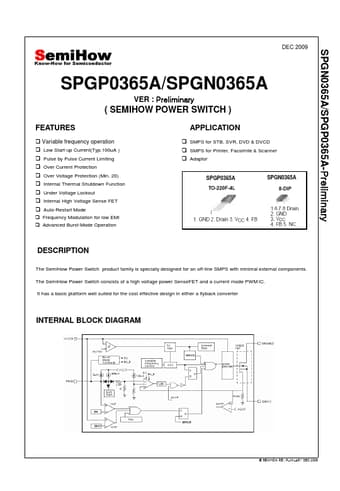

Additional preview pages of the SPGP0365A datasheet.

Product details

Description

www.DataSheet.net/ The SemiHow Power Switch product family is specially designed for an off-line SMPS with minimal external components.The SemiHow Power Switch consists of a high voltage power SenseFET and a current mode PWM IC.It has a basic platform well suited for the cost effective design in either a flyback converter INTERNAL BLOCK DIAGRAM ◎ SEMIHOW REV.PLIMILARY”DEC 2009 Datasheet pdf - http://www.DataSheet4U.co.kr/ Absolute Maximum Ratings SPGP0365A Symbol VDSS ID VGD IDM VGS EAS

Features

 Variable frequency operation  Low Start-up Current(Typ.100uA )  Pulse by Pulse Current Limiting  Over Current Protection  Over Voltage Protection (Min. 20)  Internal Thermal Shutdown Function  Under Voltage Lockout  Internal High Voltage Sense FET  Auto-Restart Mode  Frequency Modulation for low EMI  Advanced Burst-Mode Operation.
