SPGP0380A

The SPGP0380A is SEMIHOW POWER SWITCH designed by SemiHow.

Product Overview

SemiHow

Datasheet Details

Part number	SPGP0380A
Manufacturer	SemiHow
File Size	502.66 KB
Description	SEMIHOW POWER SWITCH
Datasheet	SPGP0380A_SemiHow.pdf

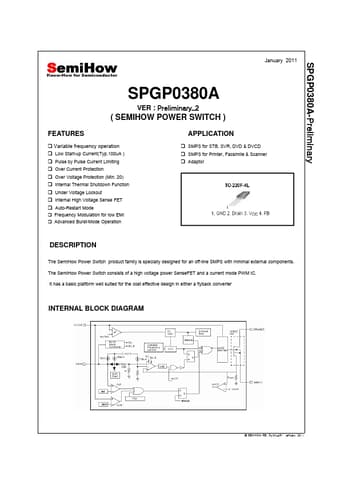

Additional preview pages of the SPGP0380A datasheet.

Product details

Description

www.DataSheet.net/ The SemiHow Power Switch product family is specially designed for an off-line SMPS with minimal external components.The SemiHow Power Switch consists of a high voltage power SenseFET and a current mode PWM IC.It has a basic platform well suited for the cost effective design in either a flyback converter INTERNAL BLOCK DIAGRAM ◎ SEMIHOW REV.PLIMILARY” January 2011 Datasheet pdf - http://www.DataSheet4U.co.kr/ SP PGP0380A-Pre eliminary Absolute Maximum Ratings Ta=25C,

Features

 Variable frequency operation  Low Start-up Current(Typ.100uA )  Pulse by Pulse Current Limiting  Over Current Protection  Over Voltage Protection (Min. 20)  Internal Thermal Shutdown Function  Under Voltage Lockout  Internal High Voltage Sense FET  Auto-Restart Mode  Frequency Modulation for low EMI  Advanced Burst-Mode Operation.
