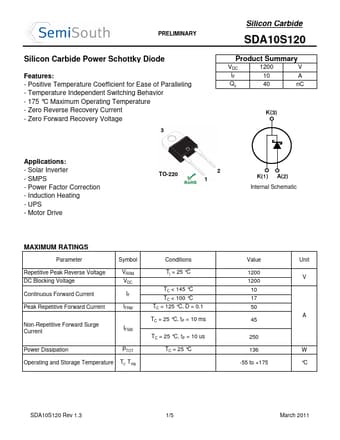

SDA10S120 Datasheet, diode equivalent, SemiSouth

SDA10S120 Features

• Diode - Positive Temperature Coefficient for Ease of Paralleling - Temperature Independent Switching Behavior - 175 °C Maximum Operating Temperature - Zero Reverse Recovery Current - Zero Fo

PDF File Details

Part number:

SDA10S120

Manufacturer:

SemiSouth

File Size:

186.09kb

Download:

📄 Datasheet

Description:

Silicon carbide power schottky diode.

SDA10S120 Application

• Applications - Solar Inverter - SMPS - Power Factor Correction - Induction Heating - UPS - Motor Drive TO-220 2 1 K(1) A(2) Internal Schematic

TAGS

SDA10S120

SemiSouth
