SDA116 - 25A / 1000V THREE PHASE BRIDGE RECTIFIER ASSEMBLY ULTRA FAST

Product Overview

SSDI

📥 Download Datasheet

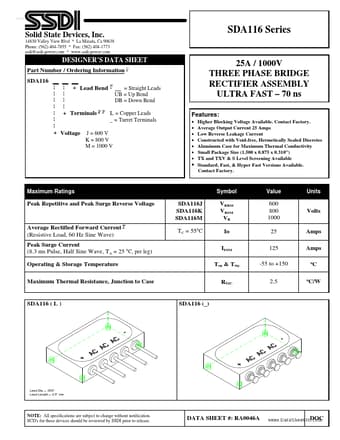

SDA116 25A / 1000V THREE PHASE BRIDGE RECTIFIER ASSEMBLY ULTRA FAST by SSDI - Datasheet Preview — Datasheet preview – SDA116

Datasheet Details

Part number	SDA116
Manufacturer	SSDI
File Size	75.30 KB
Description	25A / 1000V THREE PHASE BRIDGE RECTIFIER ASSEMBLY ULTRA FAST
Datasheet	SDA116 Datasheet
Additional preview pages of the SDA116 datasheet.

Product details

Features

Higher Blocking Voltage Available. Contact Factory. Average Output Current 25 Amps Low Reverse Leakage Current Constructed with Void-free, Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Small Package Size (1.500 x 0.875 x 0.310”) TX and TXV & S Level Screening Available.
Standard, Fast, & Hyper Fast Versions Available. Contact Factory. Maximum Ratings Symbol Value Units Peak Repetit.
