SDA1211CDNQ - TVS Diode

SDA1211CDNQ Description

.

SDA1211CDNQ Features

* Protects one data or power line
* Ultra low leakage: nA level
* Operating voltage: 12V
* Low clamping voltage Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-5 (Lightning) 8A (8/20μs)

SDA1211CDNQ Applications

* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players Mechanical Characteristics
* Package: DFN1006
* Case Material: “Green” Molding Compound.
* Mo

📥 Download Datasheet

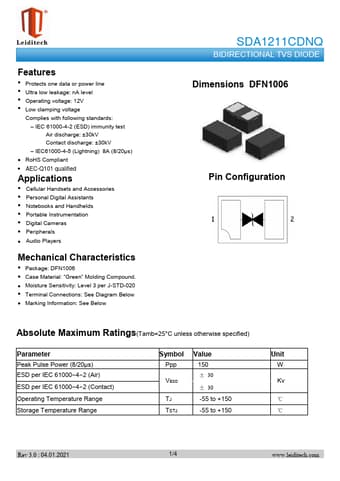

Preview of SDA1211CDNQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDA1211CDNQ
Manufacturer
Leiditech
File Size
1.51 MB
Datasheet
SDA1211CDNQ-Leiditech.pdf
Description
TVS Diode
