BT138-600 - Bi-Directional Triode Thyristor

Datasheet Summary

Description

This device is suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Features

Repetitive Peak Off-State Voltage : 600V.
R. M. S On-State Current ( IT(RMS)= 12 A ).
High Commutation dv/dt.
Non-isolated Type General.

SemiWell

📥 Download Datasheet

Datasheet Details

Part number	BT138-600
Manufacturer	SemiWell
File Size	638.46 KB
Description	Bi-Directional Triode Thyristor
Datasheet	BT138-600 Datasheet

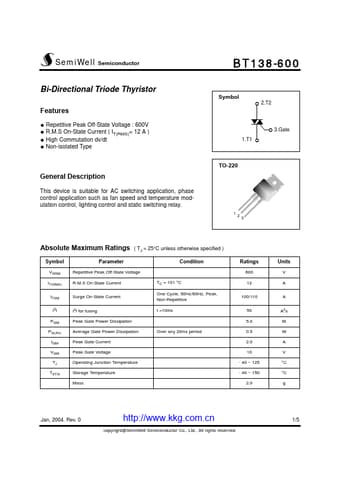

Additional preview pages of the BT138-600 datasheet.
