BT151-600 - Silicon Controlled Rectifiers

Datasheet Summary

Description

Standard gate triggering SCR is suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.

Features

Repetitive Peak Off-State Voltage : 600V.
R. M. S On-State Current ( IT(RMS)= 12 A ).
Low On-State Voltage (1.4V(Typ. )@ ITM).
Non-isolated Type General.

SemiWell

📥 Download Datasheet

Datasheet Details

Part number	BT151-600
Manufacturer	SemiWell
File Size	586.80 KB
Description	Silicon Controlled Rectifiers
Datasheet	BT151-600 Datasheet
Additional preview pages of the BT151-600 datasheet.

📁 Similar Datasheet

BT151-600 - Thyristors (Inchange Semiconductor)
BT151-650 - THYRISTORS (CDIL)
BT151-650 - Thyristors (NXP)
BT151-650 - Thyristors (INCHANGE)
BT151-650C - SCR (WeEn)
BT151-650L - SCR (WeEn)
BT151-650LTN - SCR (WeEn)
BT151-650R - SCR (NXP)
BT151-650R - Thyristor (BLUE ROCKET ELECTRONICS)
BT151-650R - SCRs (HAOPIN)

Other Datasheets by SemiWell

BT138-600 - Bi-Directional Triode Thyristor
BT139-600 - Bi-Directional Triode Thyristor

Full PDF Text Transcription

Click to expand full text

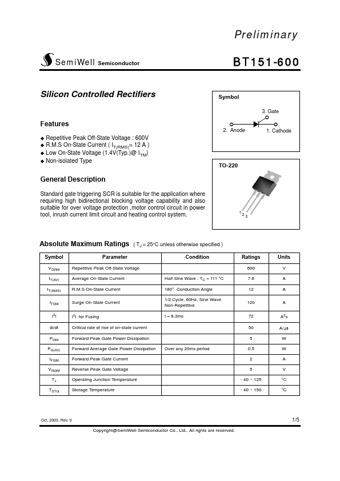

SemiWell Semiconductor Preliminary BT151-600 Silicon Controlled Rectifiers Symbol Features ◆ Repetitive Peak Off-State Voltage : 600V ◆ R.M.S On-State Current ( IT(RMS)= 12 A ) ◆ Low On-State Voltage (1.4V(Typ.)@ ITM) ◆ Non-isolated Type General Description Standard gate triggering SCR is suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. ○ 2. Anode TO-220 123 ▼ 3. Gate ○ ○ 1. Cathode Absolute Maximum Ratings ( TJ = 25°C unless otherwise specified ) Symbol Parameter Condition VDRM IT(AV) IT(RMS) ITSM I2t Repetitive Peak Off-State Voltage Average On-State Current R.M.
