BT151-1000RT - SCR

Datasheet Summary

Description

Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 (TO-220AB) plastic package intended for use in applications requiring very high bidirectional blocking voltage capability, high junction temperature capability and high thermal cycling performance.

Features

High junction operating temperature capability.
High thermal cycling performance.
Planar passivated for voltage ruggedness and reliability.
Very high bidirectional blocking voltage capability 3.

NXP

📥 Download Datasheet

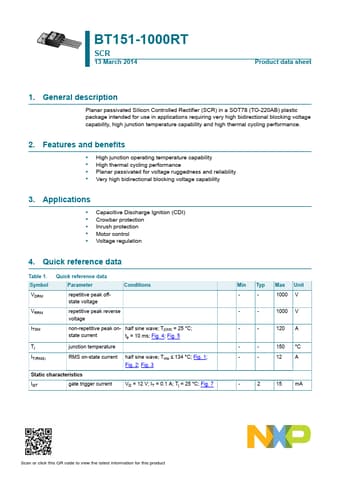

BT151-1000RT SCR by NXP - Datasheet Preview — Datasheet preview – BT151-1000RT

Datasheet Details

Part number	BT151-1000RT
Manufacturer	NXP
File Size	212.97 KB
Description	SCR
Datasheet	BT151-1000RT Datasheet
