BT151-500RT Datasheet PDF - NXP Silicon Controlled Rectifier Specs

BT151-500RT - Silicon Controlled Rectifier

Datasheet Summary

Description

Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 (TO-220AB) plastic package intended for use in applications requiring good bidirectional blocking voltage capability, high surge current capability, high junction temperature capability and high thermal cycling performance.

Features

Good bidirectional blocking voltage capability.
High junction operating temperature capability.
High surge current capability.
High thermal cycling performance.
Planar passivated for voltage ruggedness and reliability 3.

Datasheet Details

Part number	BT151-500RT
Manufacturer	NXP
File Size	207.83 KB
Description	Silicon Controlled Rectifier
Datasheet	BT151-500RT Datasheet
Additional preview pages of the BT151-500RT datasheet.

📁 Similar Datasheet

BT151-500RT - SCR (WeEn)

BT151-500R - Thyristors (Inchange Semiconductor)

BT151-500R - Thyristor (BLUE ROCKET ELECTRONICS)

BT151-500R - SCRs (HAOPIN)

BT151-500R - THYRISTORS (Comset Semiconductors)

BT151-500R - SCR (WeEn)

BT151-500RG - SCRs (First Semiconductor)

BT151-500 - THYRISTORS (CDIL)

BT151-500 - Thyristors (INCHANGE)

BT151-500C - SCR (WeEn)

Full PDF Text Transcription

Click to expand full text

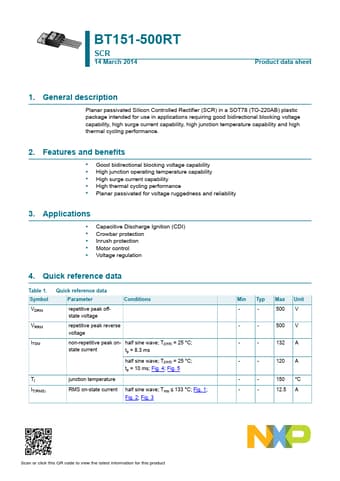

TO-220AB BT151-500RT SCR 14 March 2014 Product data sheet 1. General description Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 (TO-220AB) plastic package intended for use in applications requiring good bidirectional blocking voltage capability, high surge current capability, high junction temperature capability and high thermal cycling performance. 2. Features and benefits • Good bidirectional blocking voltage capability • High junction operating temperature capability • High surge current capability • High thermal cycling performance • Planar passivated for voltage ruggedness and reliability 3. Applications • Capacitive Discharge Ignition (CDI) • Crowbar protection • Inrush protection • Motor control • Voltage regulation 4. Quick reference data Table 1.
