STF8A80 Bi-Directional Triode Thyristor

STF8A80 Description

SemiWell Semiconductor Bi-Directional Triode Thyristor www.DataSheet4U.net STF8A80 UL : E228720 Symbol ○ 2.T2 .
This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation co.

STF8A80 Features

* Repetitive Peak Off-State Voltage : 800V
* R. M. S On-State Current ( IT(RMS)= 8 A )
* High Commutation dv/dt

📥 Download Datasheet

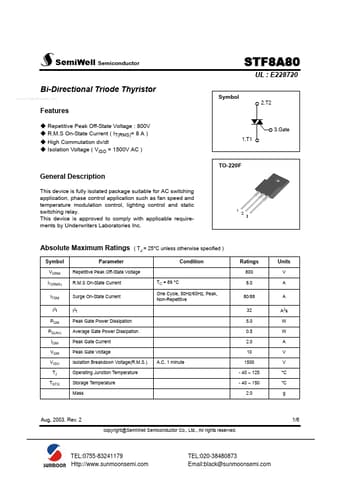

Preview of STF8A80 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STF8A80
Manufacturer
SemiWell
File Size
1.03 MB
Datasheet
STF8A80_SemiWell.pdf
Description
Bi-Directional Triode Thyristor
