STF817 Datasheet - ST Microelectronics

STF817 PNP MEDIUM POWER TRANSISTORS

www.DataSheet4U.com ® STF817 STN817 PNP MEDIUM POWER TRANSISTORS Type STF817 STN817 s Marking 817 N817 s SURFACE-MOUNTING DEVICES IN MEDIUM POWER SOT-223 AND SOT-89 PACKAGES AVAILABLE IN TAPE & REEL PACKING 2 APPLICATIONS s VOLTAGE REGULATION s RELAY DRIVER s GENERIC SWITCH DECRIPTION The STF817 and STN817 are PNP transistors manufactured using Planar Technology resulting in rugged high performance devices. 1 SOT-223 2 3 SOT-89 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Sy.

STF817_STMicroelectronics.pdf

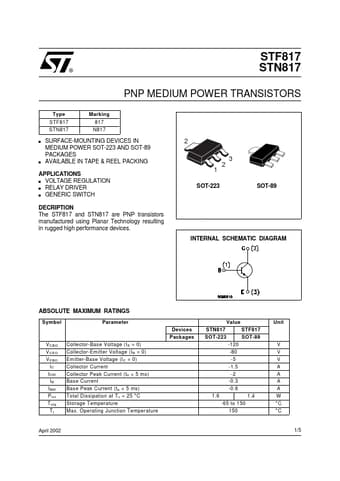

Preview of STF817 PDF
STF817 Datasheet Preview Page 2 STF817 Datasheet Preview Page 3

Datasheet Details

Part number:

STF817

Manufacturer:

STMicroelectronics ↗

File Size:

70.30 KB

Description:

Pnp medium power transistors.
