SKiiP2414GB12E4-4DUL IGBT

SKiiP 2414 GB12E4-4DUL Absolute Maximum Ratings Symbol System VCC Visol It(RMS) Imax (peak) fout Operating DC link voltage DC, t = 1 s, each polarity per AC terminal, rms, sinusoidal current Max. peak current of power section fundamental output frequency storage temperature Tj = 25 °C Tj = 175 °C Ts = 25 °C Ts = 70 °C 900 4300 500 3600 1 -40 85 1200 3109 2528 2400 junction temperature Tj = 25 °C Tj = 175 °C Ts = 25 °C Ts = 70 °C -40 175 1200 2369 1878 2400 junction temperature power supply inp.

SKiiP2414GB12E4-4DUL Features

* Intelligent Power Module

* Integrated current and temperature measurement

* Integrated DC-link measurement

* Solder free power section

* IGBT4 and CAL4F technology

* Tjmax = 175°C

* Safety isolated switching and sensor signals

* Digit

SKiiP2414GB12E4-4DUL-SemikronInternational.pdf

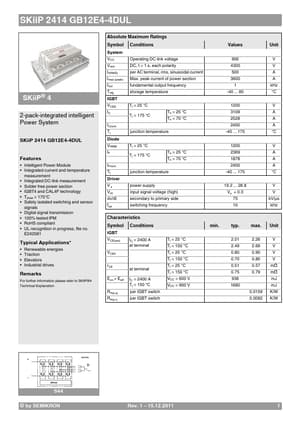

SKiiP2414GB12E4-4DUL Datasheet Preview — Preview of SKiiP2414GB12E4-4DUL PDF
