SKR240 Datasheet - Semikron

Stud Diode

SKR240 Features

* Reverse voltages up to 1800 V

* Hermetic metal case with glass insulator

* Cooling via heatsinks

* Threaded stud ISO M16 x 1,5, M20 x 1,52) or ¾ - 16 UNF 2A2)

* SKN: anode to stud

* SKR: cathode to stud Typical Applications

* All purpose high power rectifier diode

SKR240 General Description

for ¾ - 16 UNF thread, while “M20” must be added for M20x1,5 3) To include silicone sleeve, “C/ ESPAG.” Should be added in description. Symbol IFAV ID IFSM i2t VF V(TO) rT IRD Qrr Rth(j-c) Rth(c-s) Tvj Tstg Visol Ms a m Case VRRM V 400 800 1200 1400 1600 1800 IFRMS = 500 A (maximum value for cont.

SKR240 Datasheet (612.44 KB)

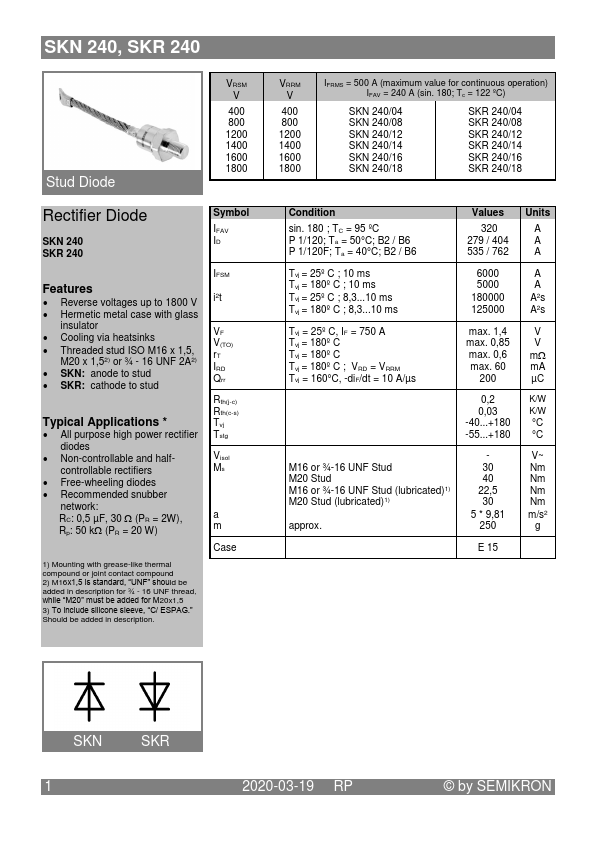

Preview of SKR240 PDF

Datasheet Details

Part number:

SKR240

Manufacturer:

Semikron

File Size:

612.44 KB

Description:

Stud diode.

📁 Related Datasheet

SKR20 Rectifier Diodes (Semikron)

SKR26 STANDARD RECOVERY DIODE (COMSET)

SKR26 Rectifier Diodes (Semikron)

SKR-GSW18 Rectifier Diode (Semikron)

SKR-SWxx Rectifier Diode (Semikron)

SKR-TABLxx Rectifier Diode (Semikron)

SKR100 Rectifier Diodes (Semikron)

SKR12 DIODE (Semikron International)

SKR12-04 Silicon Rectifier Diodes (Semikron)

SKR12-08 Silicon Rectifier Diodes (Semikron)

TAGS

SKR240 Stud Diode Semikron

Image Gallery

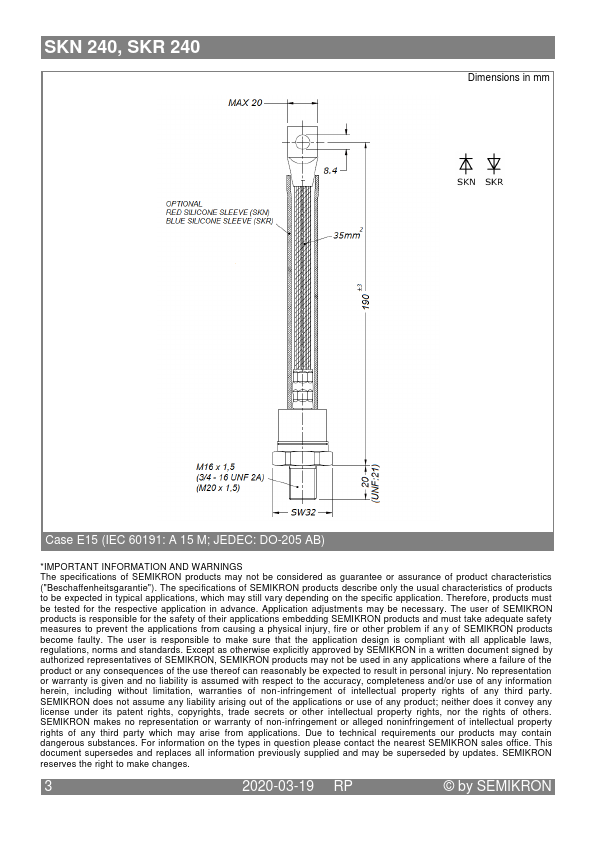

SKR240 Datasheet Preview Page 2 SKR240 Datasheet Preview Page 3
