SC60224 - High Speed 12-Bit Magnetic Rotary Encoder

Product Overview

Semiment

📥 Download Datasheet

SC60224 High Speed 12-Bit Magnetic Rotary Encoder by Semiment - Datasheet Preview — Datasheet preview – SC60224

Datasheet Details

Part number	SC60224
Manufacturer	Semiment
File Size	402.66 KB
Description	High Speed 12-Bit Magnetic Rotary Encoder
Datasheet	SC60224 Datasheet
Additional preview pages of the SC60224 datasheet.

Product details

Description

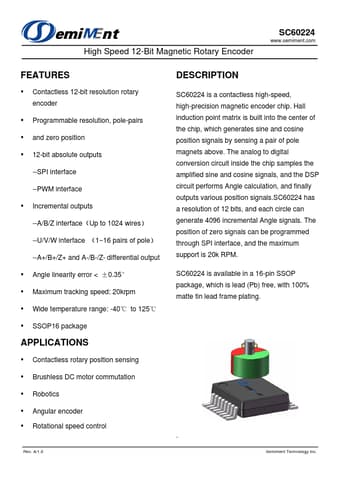

SC60224 is a contactless high-speed, high-precision magnetic encoder chip.

Features

Contactless 12-bit resolution rotary encoder.
Programmable resolution, pole-pairs.
and zero position.
12-bit absolute outputs --SPI interface --PWM interface.
Incremental outputs --A/B/Z interface（Up to 1024 wires） --U/V/W interface （1~16 pairs of pole） --A+/B+/Z+ and A-/B-/Z- differential output.
Angle linearity error < ±0.35°.
Maximum tracking speed: 20krpm.
Wide temperature range: -40℃ to 125℃.
SSOP16 package.
