SC603 Datasheet, output equivalent, Semtech

SC603 Features

  • Output ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ Small size - MLP Micro 10 lead 3x3mm package Selectable 5.0V or 4.5V output voltage 200mA available with 4.5V output 160mA available with 5.0V output

PDF File Details

Part number:

SC603

Manufacturer:

Semtech

File Size:

821.63kb

Download:

📄 Datasheet

Description:

Charge pump regulator with selectable 5.0v/4.5v output. The SC603 is a versatile charge pump designed for use in battery operated power supply applications. The wide input range is matched

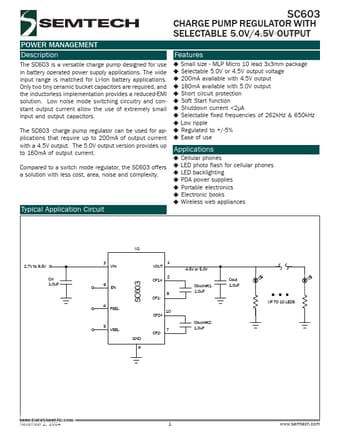

Datasheet Preview: SC603 📥 Download PDF (821.63kb)
Page 2 of SC603 Page 3 of SC603

SC603 Application

  • Applications The wide input range is matched for Li-Ion battery applications. Only two tiny ceramic bucket capacitors are required, and the inducto
