W02M Glass Passivated Single-Phase Bridge Rectifiers

W02M Description

RB151-RB157 / W005-W10 / W005G-W10G / W005M-W10M / W005GM-W10GM Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 to 1000 Volts Forwa.

W02M Features

* Surge overload ratings to 40 or 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 265oC / 10 seconds / 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Case: Molded plast

📥 Download Datasheet

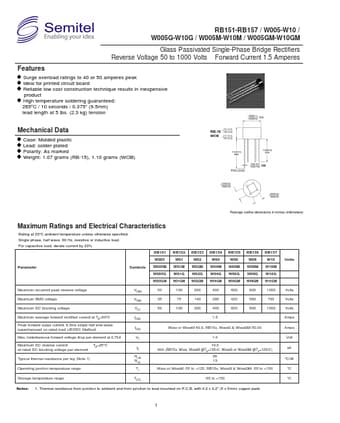

Preview of W02M PDF
datasheet Preview Page 2

Datasheet Details

Part number
W02M
Manufacturer
Semitel
File Size
202.18 KB
Datasheet
W02M-Semitel.pdf
Description
Glass Passivated Single-Phase Bridge Rectifiers
